In the world of circuit protection, components that respond to heat are often the unsung heroes preventing damage from short circuits, overcurrent, or power surges. One of the most tried-and-true components in this category is the PTC thermistor—a technology that’s been around for decades and still plays a vital role in modern electronics.
But what exactly is a PTC, and when is it the right choice for your design?

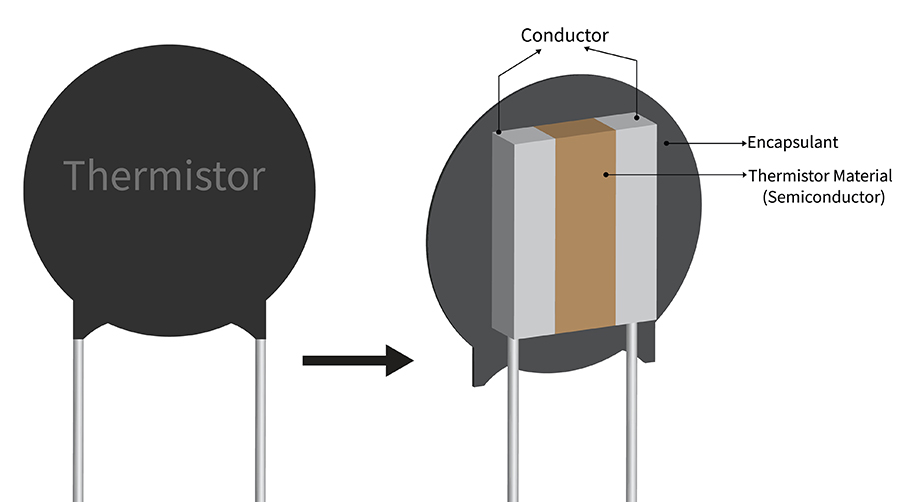

PTC 101: A Layman’s Guide
PTC stands for Positive Temperature Coefficient. In simple terms, this means the resistance of the component increases as it gets hotter.
Here’s how it works:
- Under normal conditions, a PTC allows current to flow freely, with low resistance.
- If too much current flows—perhaps due to a fault or short circuit—the PTC heats up.
- As it heats, its resistance increases sharply, limiting the current flow—effectively acting like a self-resetting fuse.
- Once the fault is cleared and the device cools down, the PTC returns to its low-resistance state, and the circuit can resume normal operation.
This behavior makes PTCs great for overcurrent protection and inrush current limiting.
When to Use PTCs in a Circuit
PTCs shine in applications where:
- Self-resetting protection is needed (no need to replace a blown fuse).
- The current fault is temporary and not catastrophic.
- The system can tolerate a brief interruption during the reset time.
- There’s low complexity and cost sensitivity in the design.
Common examples include:
- USB ports and power lines in consumer electronics
- Battery packs and chargers
- LED lighting systems
- Industrial sensors and control boards
When Not to Use a PTC
While versatile, PTCs aren’t perfect for every situation. Their reset behavior—cooling back to normal—can be a downside.
Here’s why:
- The reset time depends on cooling, which can take seconds to minutes.
- If airflow is limited or the ambient temperature is high, the PTC may stay in its high-resistance state longer than desired.
- They’re not precise—trigger currents and trip times can vary depending on temperature and aging.
- In fast or safety-critical applications, that delay can be a liability.
So if you’re designing a circuit where precise, fast-acting, and repeatable protection is needed, or where high reliability under varying thermal conditions is a must—PTCs might not be your best choice.
Looking Ahead: Enter the eFuse
In next week’s post, we’ll dive into eFuses, the modern alternative to PTCs. These solid-state devices offer more precise control, faster response times, and integrated features like programmable current limits, undervoltage lockouts, and fault reporting.
eFuses haven’t made PTCs obsolete—but they’re often the better choice for newer, smarter designs where flexibility and performance are key.
The Takeaway
PTC thermistors are a simple, effective solution for overcurrent protection in many applications. Their ability to reset themselves makes them cost-effective and low maintenance. But they’re not one-size-fits-all. Understanding when and how to use them—or when to reach for an eFuse instead—can help you build more robust, reliable electronic systems.
Stay tuned next week when we explore the world of eFuses—and when to make the switch from legacy to leading-edge.
