As an electrical engineer, you’ve likely encountered the distinction between True RMS (Root Mean Square) and non-RMS (or average-responding) measurements when working with voltmeters. While this may seem like a basic concept, understanding the inner workings of these measurement techniques is essential when dealing with complex AC signals.

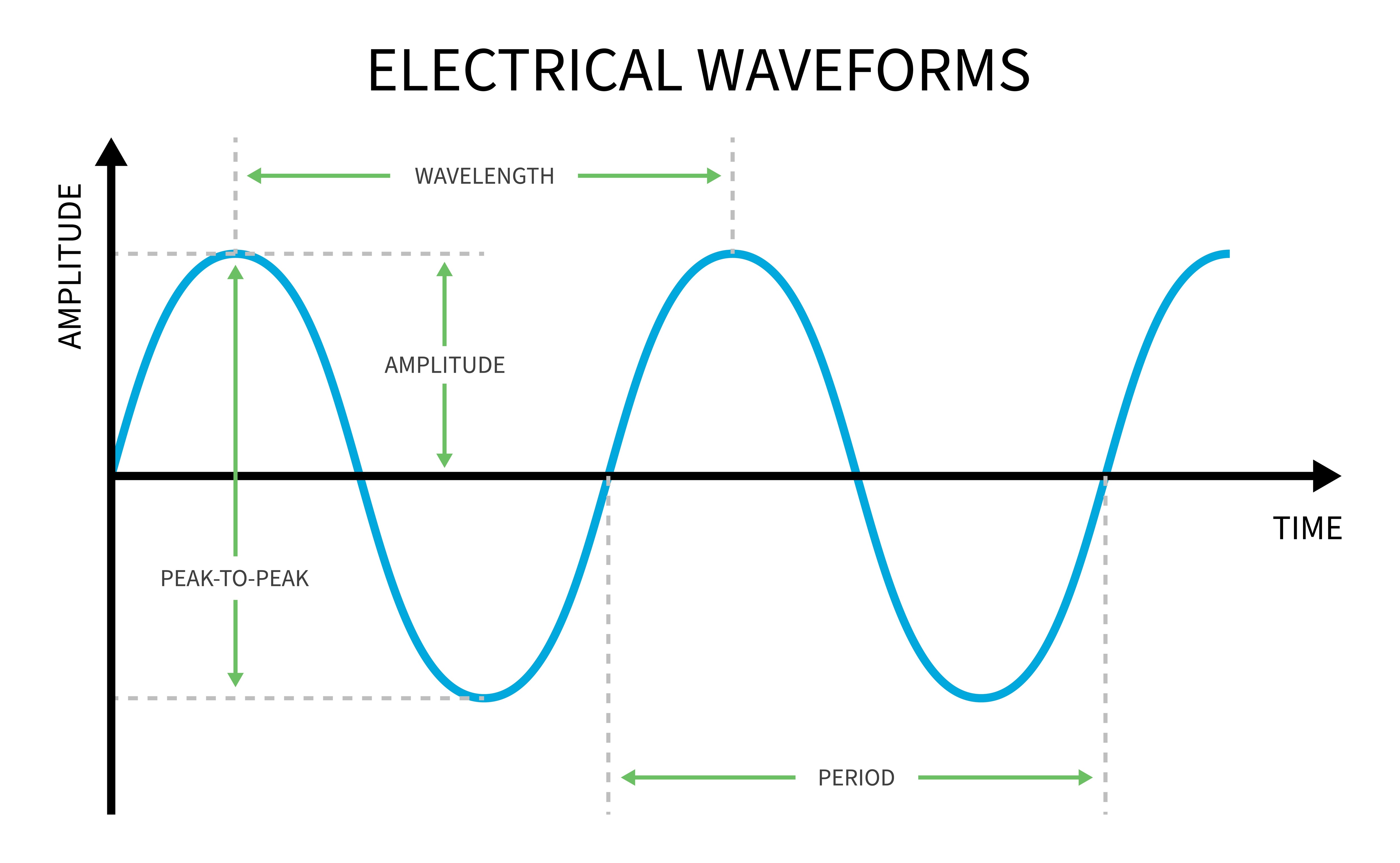

The Difference Between True RMS and Non-RMS Measurements
True RMS meters measure the actual power of an AC waveform, regardless of its shape. In contrast, average-responding meters assume the waveform is a pure sine wave and apply a scaling factor to estimate the RMS value. This assumption holds for purely sinusoidal signals but leads to significant errors for signals with harmonics, transients, or other distortions.
The RMS value of a waveform is given by:
VRMS=1T∫0Tv2(t)dtV_{RMS} = \sqrt{\frac{1}{T} \int_0^T v^2(t) dt}
This integral calculates the effective heating power of a voltage signal over a full cycle. A True RMS meter performs this calculation using electronic or digital means, ensuring accurate readings regardless of waveform complexity.
How Voltmeters Measure Non-DC Waveforms
Most standard voltmeters employ one of the following techniques to approximate an AC signal’s RMS value:
Averaging Rectified Signals:
Older or cheaper meters rectify the AC signal, then measure the average value of the rectified waveform. They multiply this by a fixed scaling factor (~1.11 for a sine wave) to estimate the RMS value. This method is inaccurate for waveforms deviating from pure sine waves.
Peak Detection with a Scaling Factor:
Some meters determine the peak voltage and apply a factor (often 0.707 for sine waves) to approximate RMS. However, this method also assumes a known waveform shape and fails for non-sinusoidal signals.
True RMS Measurement via Integration:
A True RMS voltmeter squares the instantaneous voltage, averages the squared values over time, and then takes the square root. This approach directly computes the RMS value, independent of waveform shape.

Why True RMS is Essential for Non-Sinusoidal Waveforms
In many real-world scenarios, AC signals are not perfect sine waves. Consider the following cases:
- Variable Frequency Drives (VFDs): Output voltages are often pulse-width modulated (PWM) signals, which contain significant harmonic content.
- Non-Linear Loads: Devices like switching power supplies, LED drivers, and electronic ballasts draw current in non-sinusoidal bursts.
- Distorted Mains Power: Harmonic distortion from industrial equipment can alter the waveform significantly.
In these situations, using an average-responding meter can lead to significant measurement errors—sometimes underreporting or overreporting voltage by 30% or more. A True RMS meter ensures an accurate representation of the actual power delivered, making it indispensable for diagnosing power quality issues, measuring loads, and ensuring electrical safety.
Conclusion
While average-responding meters may suffice for simple sinusoidal signals, True RMS meters are essential when dealing with distorted, nonlinear, or complex waveforms. Understanding how your meter measures AC voltage—and when a True RMS meter is necessary—ensures that your readings reflect the true electrical conditions in your circuits. Next time you’re troubleshooting or designing an electrical system, make sure you’re using the right tool for the job!
