Low Voltage Disconnect – 4404

Call for Price (574) 522-0246

The 4044 is a smart battery protection module designed to keep your truck’s power system reliable. It automatically disconnects auxiliary power if the vehicle system gets too low, preventing unexpected dead, deep-discharged batteries. Once the battery recovers, the user can perform a manual reset. Built for tough conditions, it handles high-power loads and includes multiple safety features to prevent damage. With a connection to dash-mount indicators and controls, it ensures your equipment stays protected and ready to go.

Category:

4404 Low Voltage Disconnect

  • 12V Automotive Operating Voltage
  • Bi-Directional Current Flow
  • 200A Continuous
  • 250A Surge
  • Disconnect after 60sec of being <11.6v
  • Diagnostic Red/Green LED
  • M10 Stud Connections
  • Reverse battery Protection
  • Short Circuit Protection
  • Overload Protection
  • Thermal Protection
  • Reverse Current Protection (Optional)
  • Loss of Ground Protection
  • Loose Connection Protection

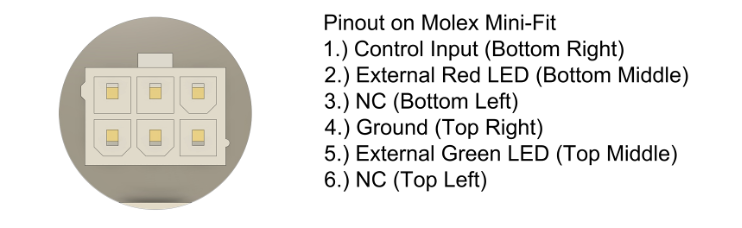

Pin Diagram

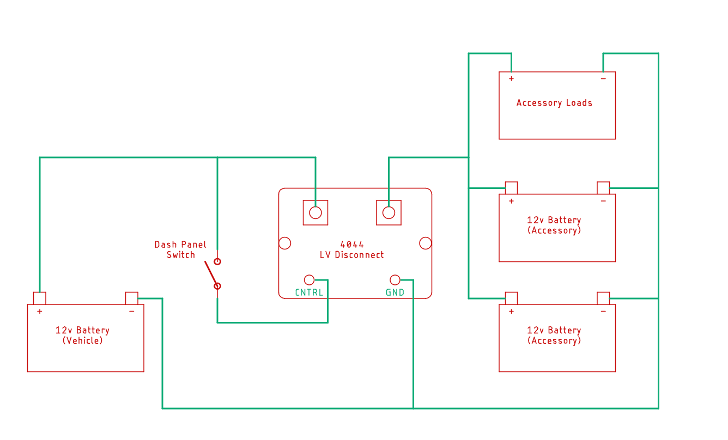

Wiring Diagram

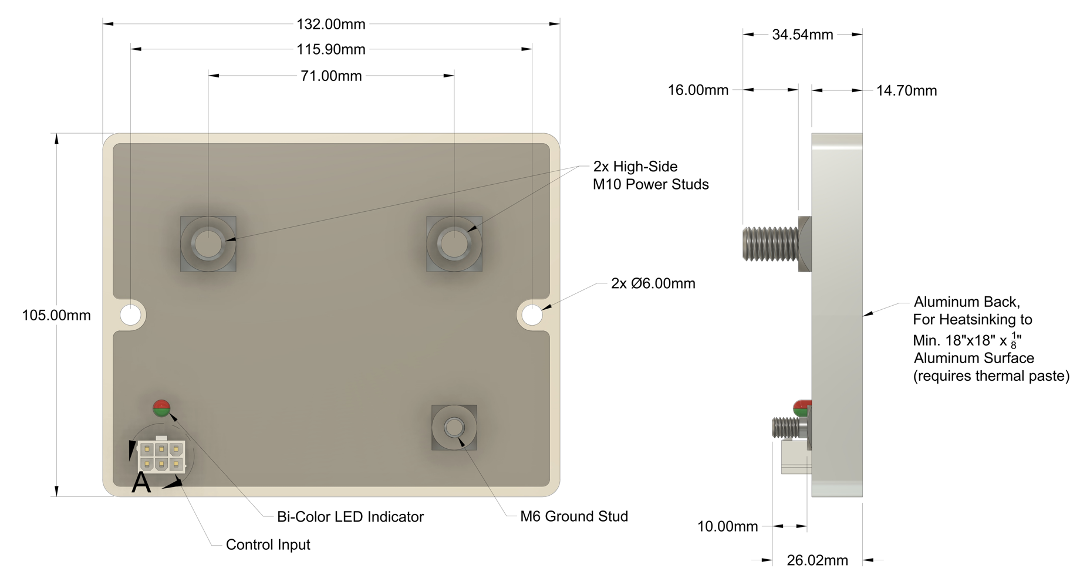

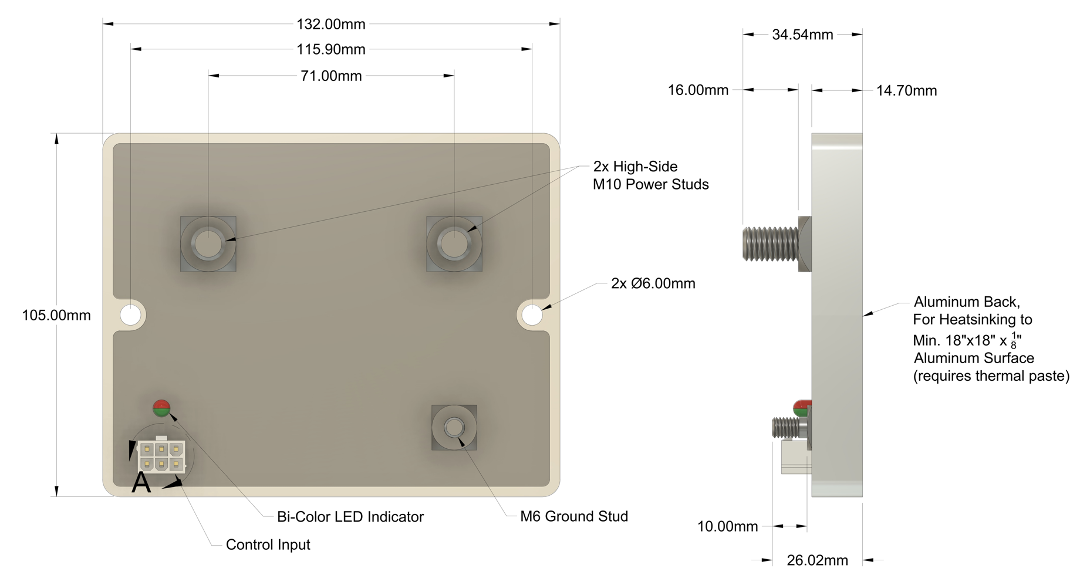

Technical Drawing
